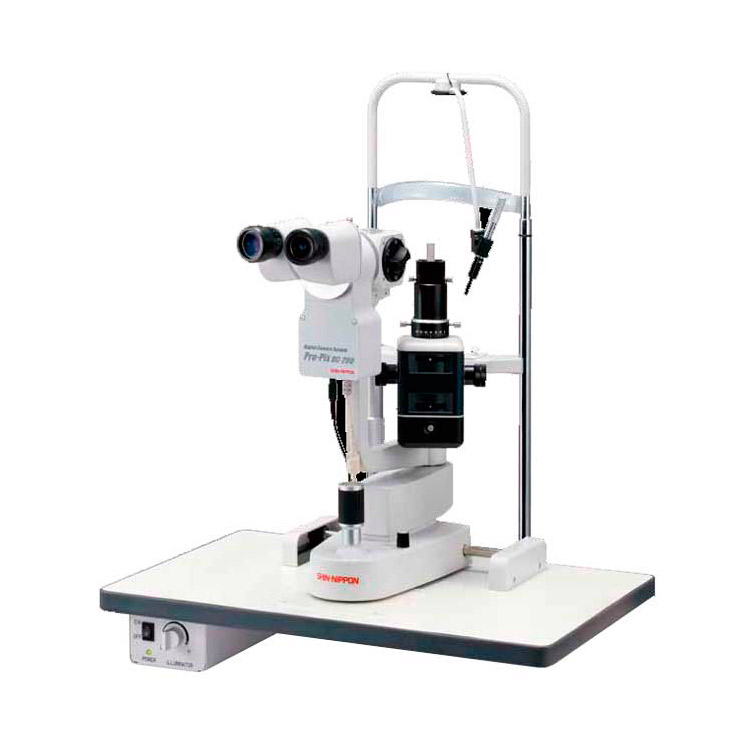

SL-45DX / SL-45

SL-45DX/45 is the standard model that holds every basic function and is also capable to attach digital camera to suit the user’s various examination.

*Digital camera can only be mounted to SL-45DX

Digital Camera System “Pro-Pix DC-200” is available as an option for Model: SL-95 and SL-45DX.

Software which can be installed into your PC for Photo and Video of patient examinations. Stored images may be edited.

Pro-Pix Camera is powered by the USB port of your PC, helps to reduce additional cable clutter.

Specification

		SL-45DX/45
Microscope	Type	Binoculer, Galilean-type
	Magnification Changing Method	Drum Rotation 3 Step
	Eyepieces	×13.5 High-Eyepoint
	Eyepieces	（×18 available as an option）
	Total Magnification	×10, ×16, ×25
	Field of View	φ20, φ13, φ8mm
	Pupillary Distance	43mm to 80mm
	Pupillary Distance	43mm to 80mm	Diopter Adjustment Range	-5D to +5D
	Base	Working Distance （Back & Forth）	72mm
Working Distance （Left & Right）		100mm
Working Distance （Up & Down）		30mm
Chin-rest	Vertial Working Distance	70mm
Chin-rest	Fixation Target	Tungsten
Illumination system	Slit Width	0 to 15mm, continuous
	Slit Length	0.2,1,3,5,8,15mm
	Light Source (Bulb)	6V 20W (Halogen)
	Filter	Cobalt, Heat Absorption, Green
Power	Voltage	AC 100-120V, 220V, 240V
Power	Power Input	50VA
Size	Weight	20〜22kg
Size	Size	480mm（W）× 410mm（D）× 670mm（H）
Optional Accessories		Pro-Pix(Foot Switch Included),
		Tonometer,CCDCamera,Beam Splitter,
		Measuring Eyepiece(×10)
